Lowbed Semi-Tralier

The 3-axle low bed semi-trailer is a professional heavy haul transport trailer customized for shipping excavators, loaders, bulldozers and all kinds of oversized engineering machinery. It is widely applied in infrastructure construction, mining delivery and construction equipment relocation across global markets. The ultra-low deck design cuts down loading height significantly, enabling convenient roll-on loading for tall heavy-duty machines.

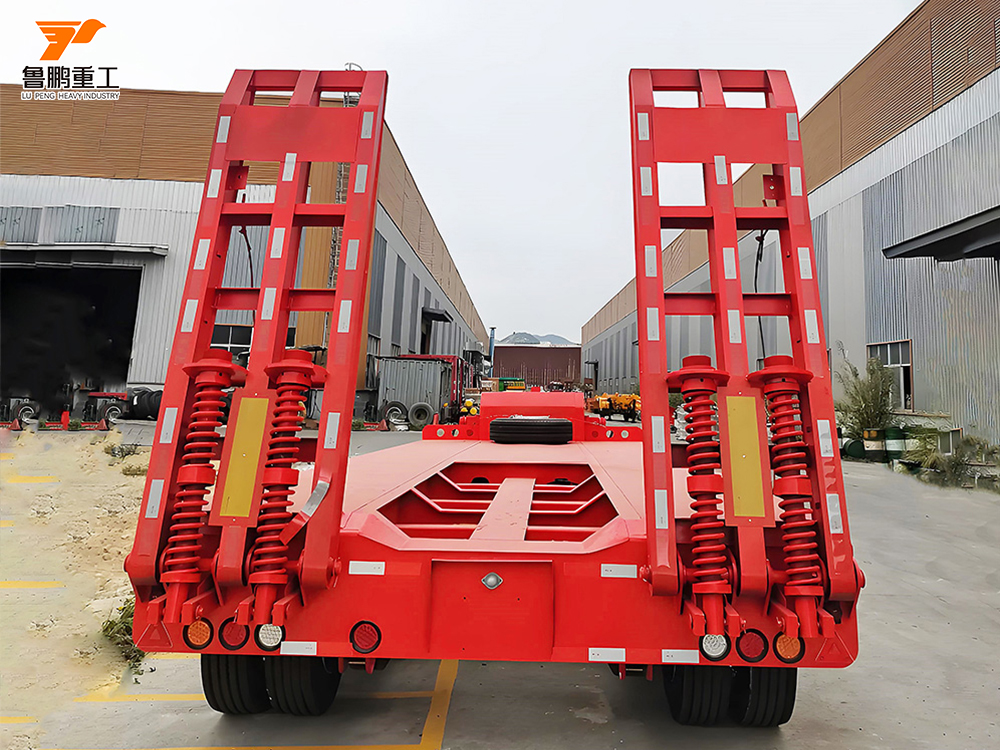

Constructed with high-strength Q355 steel for main longitudinal beam and thick wear-resistant steel floor, this low loader features robust mechanical spring suspension system. It is fitted with optional FUWA or BPW brand axles, single axle load from 13ton to 16ton, standard total loading capacity ranging from 60ton up to 120ton. Heavy-duty spring hydraulic loading ramps are installed at the rear side to support smooth self-driving of construction vehicles onto the trailer platform.

All key core components including axles, suspension, main frame and loading ramp assemblies have three supply selections to fit varied customer budgets: brand-new genuine parts, remanufactured components following OEM standard, and fully inspected refurbished spare parts. Clients can pick the most cost-effective configuration based on local transportation needs.

Complete custom service is available for worldwide purchasers. Any body paint color and personalized logo/pattern printing are supported. In addition, overall dimension (length, width, deck height) can be modified as per local road law, and optional upgrades like air suspension, liftable axle and widened flatbed are available on request.
